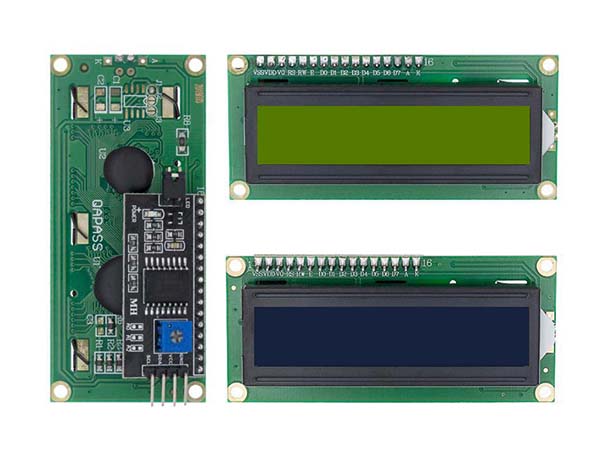

LCD display module with blue/yellow-green blacklight.

Wide viewing angle and high contrast.

Built-in industry standard HD44780 equivalent LCD controller.

Commonly used in: copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices.

LCM type: Characters

Can display 2-lines X 16-characters.

Voltage: 5V DC.

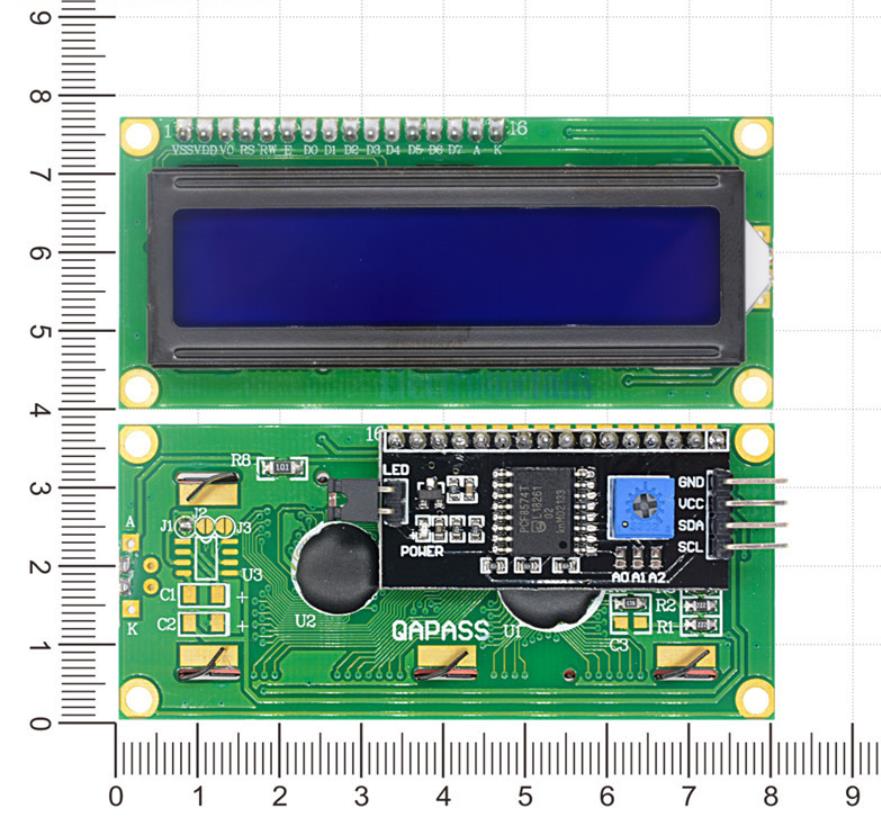

Module dimension: 80mm x 35mm x 11mm.

Viewing area size: 64.5mm x 16mm

Features IIC/I2C :

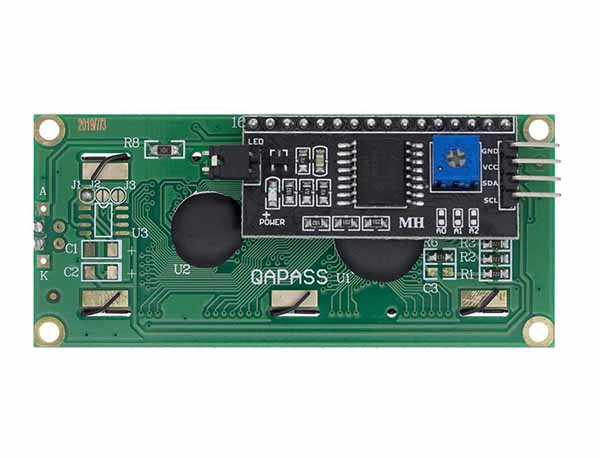

1602 I2C interface 4-wire 1602 screen

IO port of control board is only 20,so IO ports is not enough for many sensor, SD card, relay modules.

The original 1602 screen need 7 IO ports to drive up, and this module can save 5 IO ports

Package including:

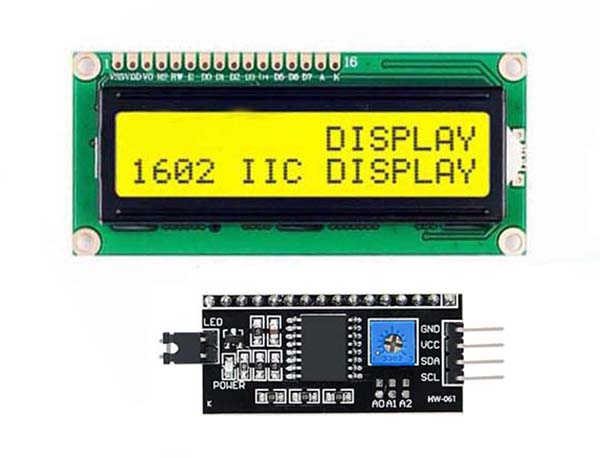

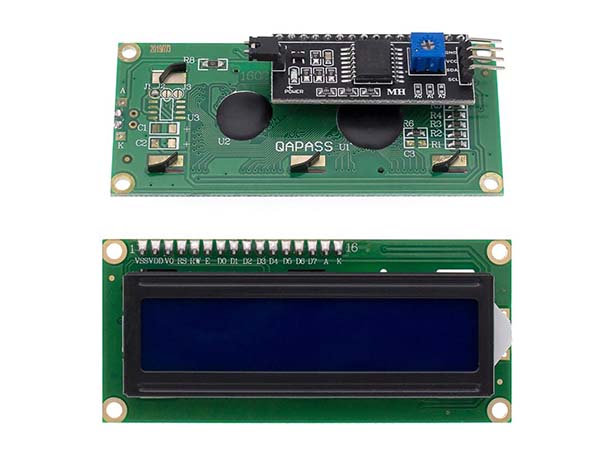

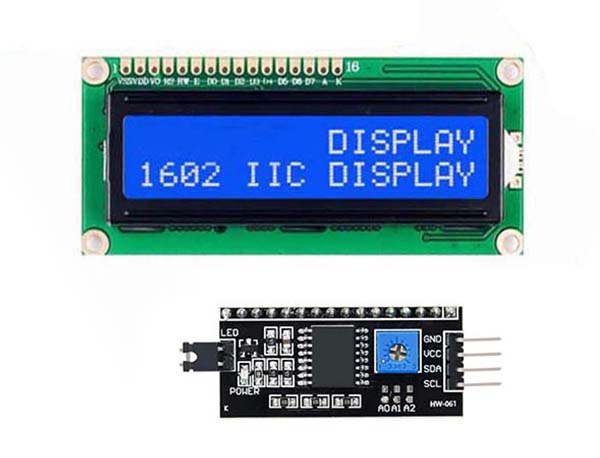

1pcs 1602 16x2 HD44780 Character LCD

1pcs IIC/I2C Serial Interface Adapter Module
